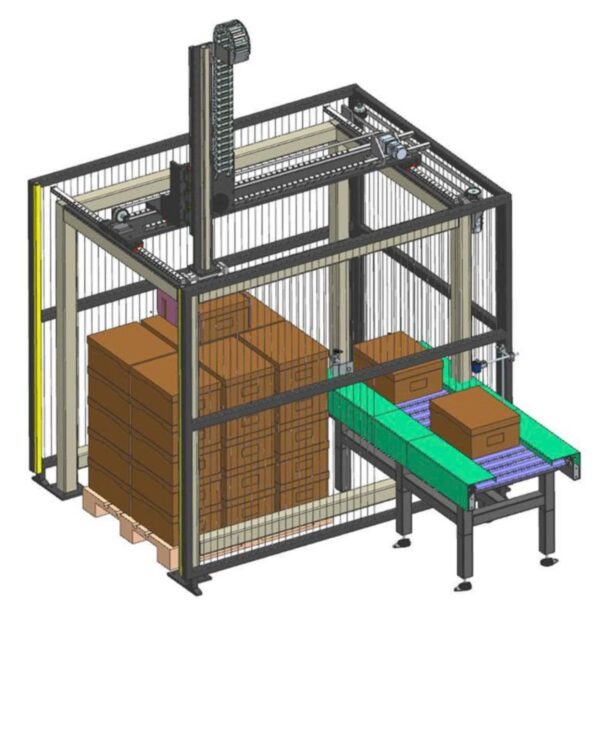

Hệ thống xếp pallet tự động

Item​

Specification​

Overall dimensions​

Customizable, e.g., 2500 x 2500 x 3000 (mm)​

Robot type​

3-axis Cartesian robot (X, Y, Z)​

X-axis stroke​

Approx. 2000 mm (customizable)​

Y-axis stroke​

Approx. 1200 mm (customizable)​

Z-axis stroke​

Approx. 1800 mm (customizable)​

Gripper type​

Vacuum suction or mechanical clamp​

Travel speed​

30–60 m/min (depending on payload)​

Payload capacity​

5–15 kg (based on product type)​

Pallet type​

Wooden or plastic, standard size 1100 x 1100 (mm)​

Safety system​

Safety fencing, photoelectric sensors, light curtain​

Control system​

PLC (Siemens/Mitsubishi/Omron), HMI touch screen​

Power supply​

220V/380V – 50Hz​

Air supply​

0.4 – 0.6 MPa (for pneumatic or vacuum systems)​

Product infeed conveyor​

Roller or belt conveyor (PVC/PU), with product detection sensors​

Applications​

Automated carton box palletizing, bags, bottles, or other packaging​
