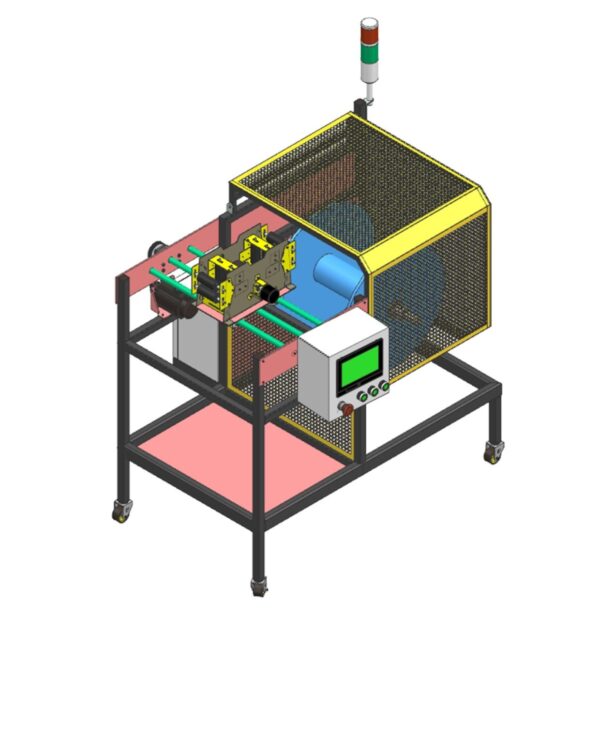

Máy quấn dây cáp/dây tự động

Item​

Specification​

Function​

Automatically wind cable, wire, or flexible tubing into uniform coils​

Applicable material​

Plastic cable, rubber hose, electric wire, or flexible tape​

Winding method​

Rotating drum spindle with adjustable tension control​

Winding diameter​

Ø100 – Ø400 mm (adjustable)​

Winding length (per coil)​

1 – 30 meters (programmable)​

Material diameter range​

Ø2 – Ø15 mm (customizable depending on cable type)​

Speed control​

Inverter motor or servo motor with PID control​

Drive system​

AC motor + timing belt or gearbox + encoder feedback​

Control system​

PLC (Siemens / Mitsubishi / Delta) + 7” HMI touchscreen​

Cutting system (optional)​

Pneumatic or electric automatic cutter​

Safety features​

Emergency stop, safety door with interlock, signal tower light​

Tension adjustment​

Pneumatic dancer arm or mechanical brake system​

Power supply​

220V – 50Hz​

Frame material​

Powder-coated steel or aluminum alloy structure​

Machine dimensions​

Approx. 1200 mm x 800 mm x 1500 mm (customizable)​

Mobility​

Equipped with casters for easy relocation​

Applications​

Wire harness, tubing manufacturing, cable assembly, plastic pipe processing​
